Description:

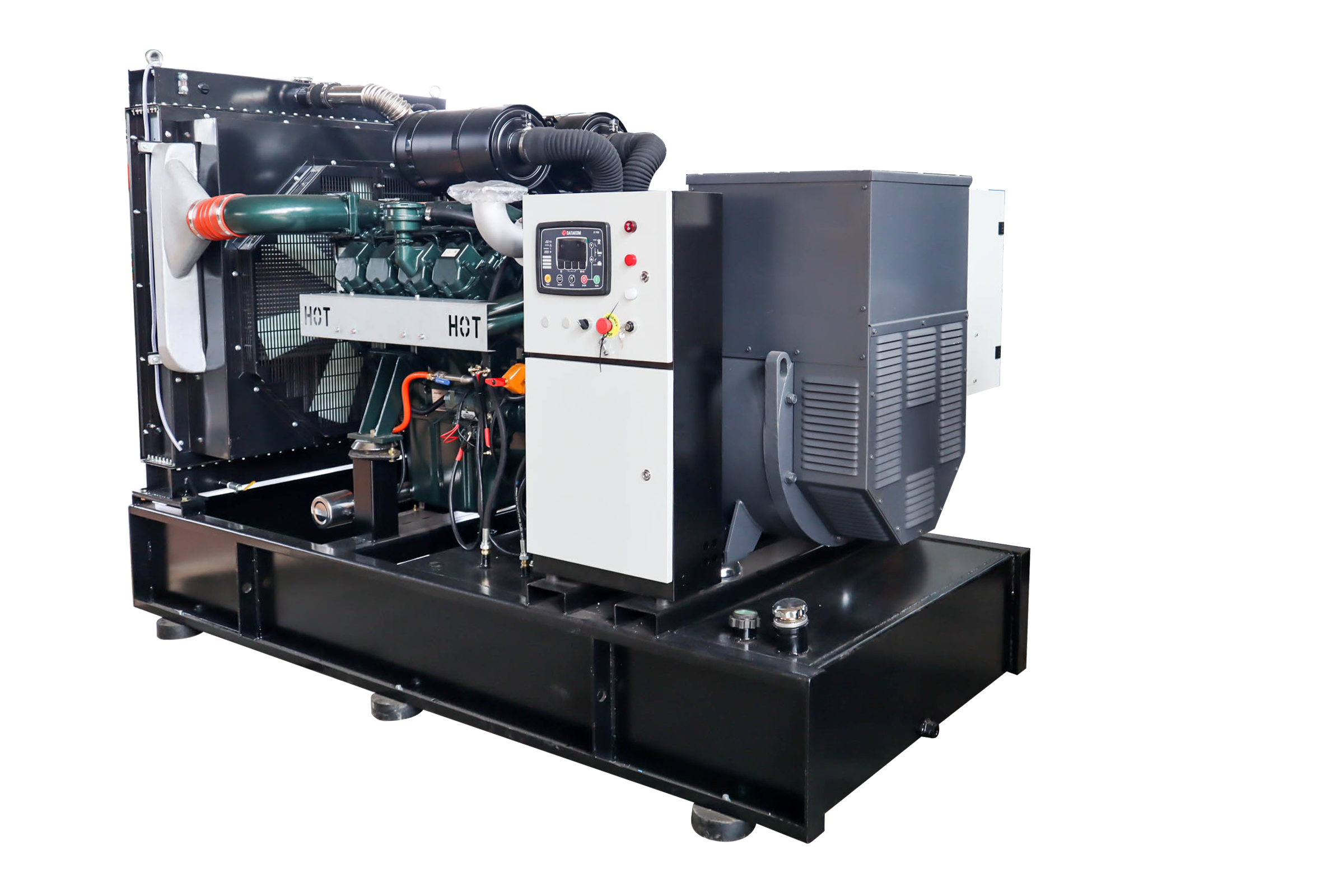

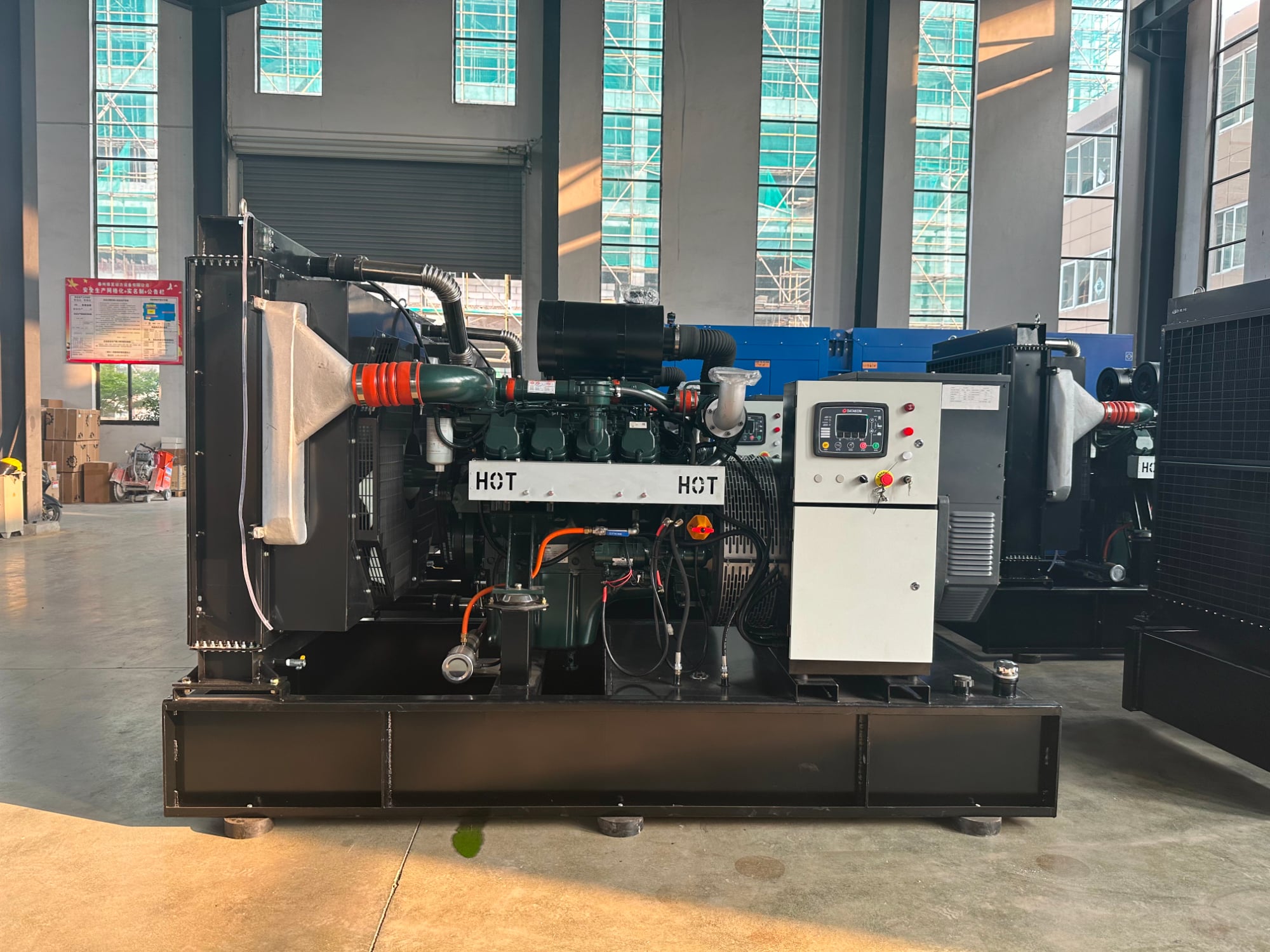

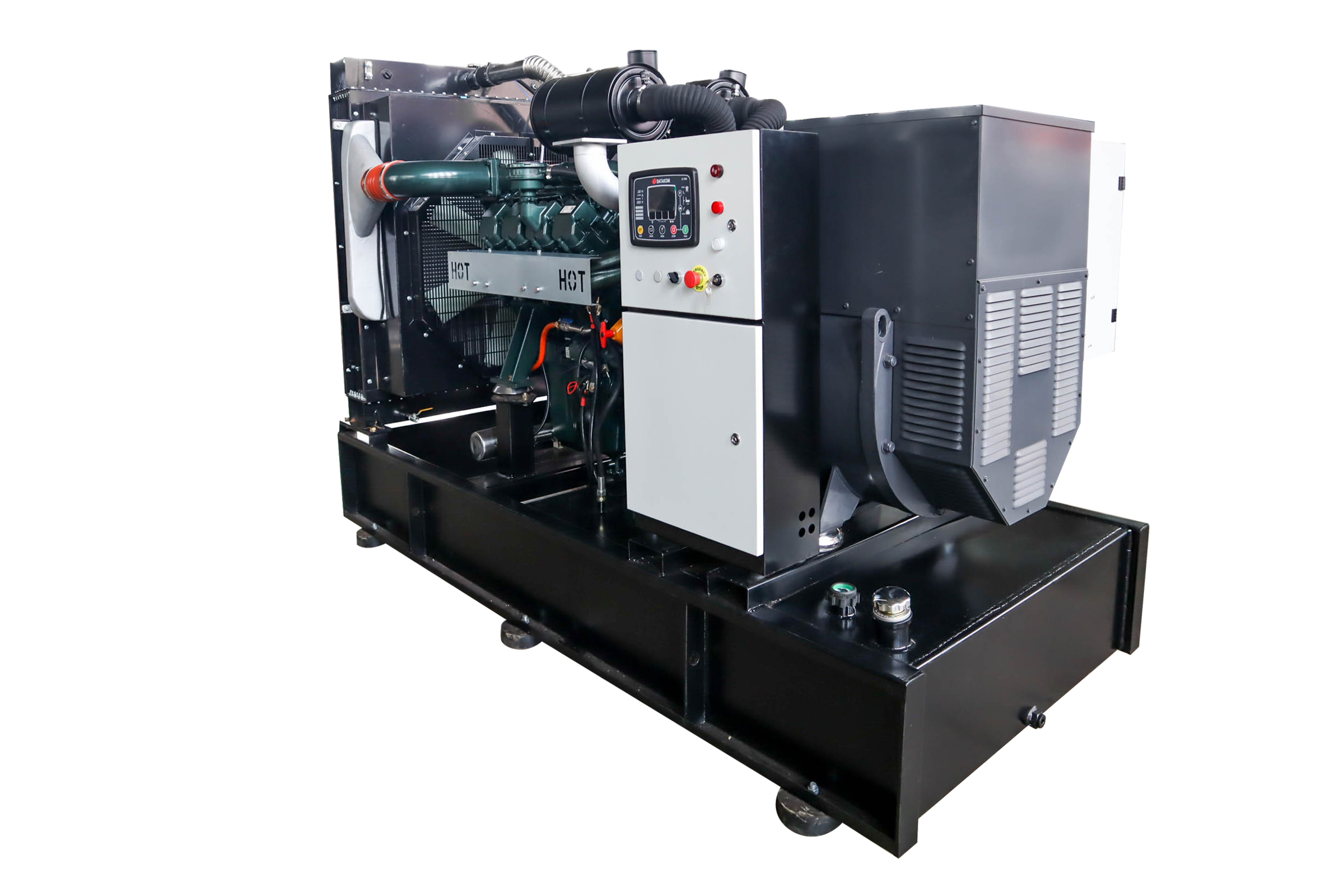

Fengfa Power's open-frame diesel generator setshave a wide power range. The power range of the single machine is from 10KW to 1000KW. According to the functions, they can be divided into six series of general type (standard type) generator sets, automated generator sets, unmannedgenerator sets, three remote control generator sets, towing and box-type, and low noise generator sets. Special specifications and model diesel generator sets can be designed and manufactured according to user requirements.
The DOOSAN diesel generator set is produced by Doosan Corporation of South Korea and features turbocharging, intercooled air intake, low noise, and excellent emissions. These characteristics make the DOOSAN diesel generator set can show good performance under different types of loads. In addition, DOOSAN diesel generator set has a wide range of power, from 50KW-600KW, can choose Shanghai Hengsheng, Wuxi Stanford, Shanghai Marathon, Shanghai strong Hui, Guangzhou English and other well-known brand engines. Can meet the needs of different customers.
The technical parameters of DOOSAN diesel generator set include rated voltage, rated frequency, rated power, starting mode, etc. For example, the rated voltage of the DOOSAN diesel generator set is 400/230V, the rated frequency is 50Hz, the rated power is between 50KW-600KW, and the starting mode is DC 24V electric start.Fengfa’sDOOSAN diesel generator set after-sales service is provided by a professional after-sales service team, including maintenance, spare parts supply and other services. When purchasing the DOOSAN diesel generator set, customers can enjoy thoughtful after-sales service to ensure the normal operation of the generator set.
Model | Prime Power | Standby Power(KVA/KW) | Engine Model | Deminsions(MM) | Weight(KG) | ||
(KVA/KW) | |||||||
FFDL185GF | 168 | 134 | 185 | 148 | P086TI-1 | 2600*870*1100 | 1500 |
FFDL225GF | 200 | 160 | 225 | 180 | P086TI | 2600*870*1100 | 1600 |
FFDL254GF | 229 | 183 | 254 | 203 | DP086LA | 2600*870*1100 | 1800 |
FFDL308GF | 273 | 218 | 308 | 246 | P126TI | 2900*900*1300 | 2000 |
FFDL334GF | 300 | 240 | 334 | 267 | P126TI-II | 2900*900*1300 | 2200 |
FFDL406GF | 365 | 292 | 406 | 325 | DP126LB | 2900*900*1300 | 2800 |
FFDL361GF | 326 | 261 | 361 | 289 | DP126CA | 2900*900*1300 | 2300 |
FFDL409GF | 370 | 296 | 409 | 327 | DP126CB | 2900*900*1300 | 2800 |
FFDL470GF | 425 | 340 | 470 | 376 | DP126CD | 2900*900*1300 | 2900 |
FFDL500GF | 454 | 363 | 500 | 400 | DP126CE | 2900*900*1300 | 3000 |
FFDL468GF | 408 | 326 | 468 | 374 | P158LE | 2900*1180*1550 | 3100 |
FFDL370GF | 463 | 370 | 511 | 409 | DP158LC | 2900*1180*1550 | 3300 |
FFDL583GF | 529 | 423 | 583 | 466 | DP158LD | 3100*1300*1700 | 3500 |
FFDL633GF | 574 | 459 | 633 | 506 | DP180LA | 3280*1289*1248 | 4000 |
FFDL03GF | 637 | 509 | 703 | 562 | DP180LB | 3280*1289*1248 | 4500 |
FFDL759GF | 689 | 551 | 759 | 607 | DP222LB | 3450*1389*1288 | 4600 |
FFDL829GF | 751 | 601 | 829 | 663 | DP222LC | 3450*1389*1288 | 4600 |
FFDL839GF | 763 | 610 | 839 | 671 | DP222CA | 3600*1500*1400 | 5500 |
FFDL900GF | 813 | 650 | 900 | 720 | DP222CB | 3600*1500*1400 | 6000 |
FFDL1000GF | 913 | 730 | 1000 | 800 | DP222CC | 3600*1500*1400 | 6500 |
FFDL839GF | 763 | 610 | 839 | 671 | DP222CAS | 3600*1500*1400 | 5500 |
FFDL900GF | 813 | 650 | 900 | 720 | DP222CBS | 3600*1500*1400 | 6000 |
FFDL1000GF | 913 | 730 | 1000 | 800 | DP222CCS | 3600*1500*1400 | 6500 |
FFDL839GF | 763 | 610 | 839 | 671 | DP222CAK | 3600*1500*1400 | 5500 |
FFDL900GF | 825 | 660 | 900 | 720 | DP222CBK | 3600*1500*1400 | 6000 |
FFDL1000GF | 913 | 730 | 1000 | 800 | DP222CCK | 3600*1500*1400 | 6500 |
